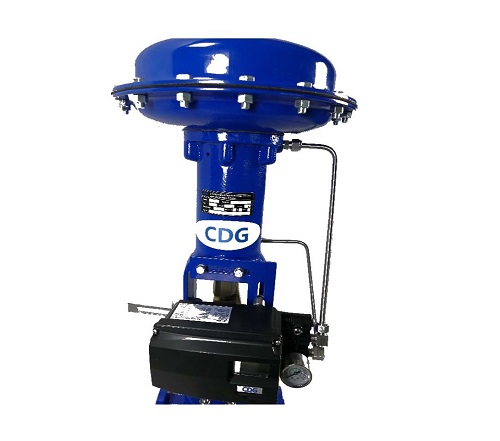

MC film series is a series of direct stroke pneumatic actuators specially designed for regulating valves.Compact structure, large output force, light weight, high reliability, easy to operate and so on.
The MC film actuator adopts the spring balance, the response valve locator is added to the pneumatic output signal on the actuator film, and the position of the valve core in the valve is determined according to the change of the signal.The zero setting of the actuator is determined by the compressive amount of the actuator spring, and the range is determined by the spring stiffness of the actuator.
MC diaphragm actuators with straight trip valve (e.g., single, two-seater, sleeve, diverter valve) and similar institutions, such as widely used in electric power, metallurgy, petroleum, chemical industry, paper making, pharmacy, food, machinery, environmental protection and other industries.
Standard specification:
|
type
|
Positive effect
|
When the air pressure at the top of the diaphragm is increased,
Actuator stem downward movement.
|
|
Counteraction
|
When the air pressure at the bottom of the diaphragm increases,
The actuator moves up the valve stem.
|
|
Texture of material
|
Film plate
|
carbon steel
|
|
Film
|
Ding Qing rubber
|
|
Actuator stem
|
Stainless steel 304
|
|
Bracket
|
carbon steel
|
|
Spring range
|
0.02-0.10，0.08-0.24MPa
|
|
Gas supply
|
0.14-0.4MPa
|
|
air connection
|
1/4”NPT
|
|
ambient temperature
|
-30℃~+70℃
|
|
Enclosure
|
Handwheel, positioner, air lock valve, solenoid valve, etc.
|
|
colour
|
gentian blue RAL5010
|
|
