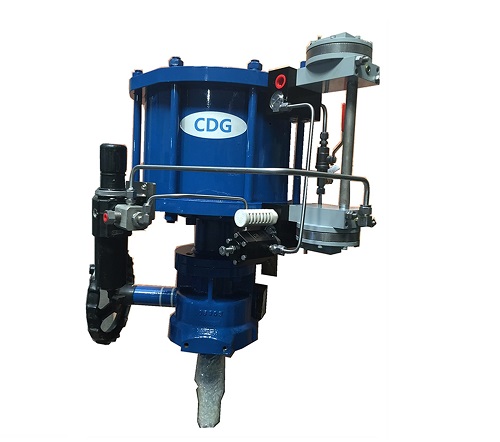

RC series linear pneumatic actuators are designed to control valve operation.The product range includes dual function with various sizes and spring feedback unit structure, and the output thrust can reach 30.000N.

All CDG actuators adopt the (CDG patented technology) permanent lubrication system to ensure the device is free of maintenance and smooth operation throughout life.

The standard RC series actuators do not need accelerators to achieve faster response speeds, and for faster requirements, CDG has a special design.

RC series of actuators integrate various locators and accessories to meet poor operating conditions.It can also provide manual operation mechanism and various installation joints according to user's special requirements.

RC series double acting and spring feedback type actuator, suitable for small and medium thrust to meet most application requirements.The body is made of anti-corrosion cast aluminum and is suitable for working in harsh environments, such as desert areas, power plants, petrochemical plants and steel industries.Lightweight, compact and functional design ensures easy installation.

RC series has its own patent for a lifetime maintenance free lubrication system.

The general requirements of RC actuators are integrated with a series of pneumatic and electropneumatic locators and accessories.The output shaft of the actuator and the flange connected with the valve can be machined according to the special requirements of the user and various application conditions.

RC series double acting or spring feedback type actuator for large thrust design.The cylinder and end cover made of carbon steel are suitable for heavy duty application.The diameter range from 260mm to 850mm can meet all kinds of special thrust requirements.

The cylinder is designed according to the schedule, so the actuator room has no reactive volume when fully opened and closed, and the deviation is minimized.

The RC series patent embedded lubrication system makes this product maintenance free for life.

The general requirements of RC actuators are integrated with a series of pneumatic and electropneumatic locators and accessories.The output shaft of the actuator and the flange connected with the valve can be machined according to the special requirements of the user and various application conditions.

In many applications, security is often an important factor to consider.Once fault occurs, even under the condition of air supply failure, RC series actuators can reach a safe place immediately, by gas lock valve can make the actuator to stay in the original location or position (full open or close).This can be done by an air lock valve system and a mechanical spring.

Spring return type actuator has complete specifications, which can meet all kinds of special requirements.The actuator of the aluminium alloy body can have one or more springs to meet the required thrust and travel.

Each valve has a different requirement, and the CDG can provide a combination of various anti-corrosion springs to meet the various types of thrust required for a particular application.

If required, RC series actuators can be equipped with mechanical springs to improve safety during gas failure.

All RC spring actuators can be decomposed without maintenance;In order to maximize safety, the spring is installed in a sturdy enclosure to prevent excess travel restrictions.

Wide range of possibilities and multiple spring options enable RC actuators to meet the specific requirements of each industrial valve.Like the cast aluminum shell series, the carbon steel shell dual action series can be attached with an additional return spring.All springs are installed in a reliable enclosure to prevent the maintenance personnel from being injured while dismantling the actuator.
