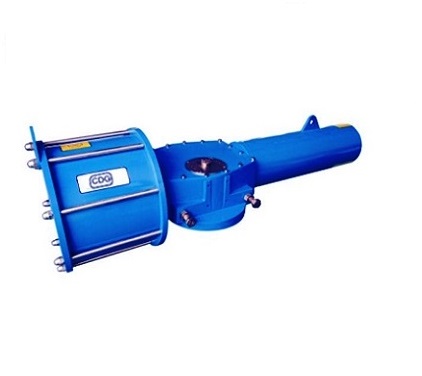

FC series actuators, gm in general with 90 ° rotating valve.For example: ball valve, butterfly valve, rotary valve and other switches or regulating the flow of functions.

FC series is symmetrical and inclined two designs.Symmetric from 0 ° to 90 ° with maximum output torque, middle position output torque is minimal.The torque characteristic that corresponds to the ball valve class.The tilting can output larger starting torque, which is more suitable for the torque characteristics of butterfly valve.Solid carbon steel shell and high strength alloy steel fork to ensure safe and reliable operation.The inner wall of the cylinder is plated with hard chromium to ensure a longer service life.The rack has no pressure, reduces leakage points and simplifies maintenance.The modular design and structure can be maximized for installation, maintenance and storage.The intrinsically safe spring package ensures efficient work and safe maintenance to prevent accidental hazards caused by bolt corrosion.

FC series actuator single action can provide maximum 120000Nm, double action can provide maximum 240000Nm torque output.Maximum working pressure 8Bar.

Stainless steel stroke limiter to travel between 82 ° and 98 ° precise adjustment.

Working temperature: - 40 ℃ ~ 150 ℃

Certification standard: PED 97/23/EC ATEX 94/9/EC.

Mechanical standard 2006/42/EC.

According to IEC/EN 60529, IP66/67 m

As a "single device" to achieve SIL3(IEC 61508) standard.

Design and test according to en 15714-3.

Model specification

FC 01-02-20 D

1, 2, 3, 4, 5

1. Product model series.

2:01-symmetric 02-- tilting.

D- double action S- single action.

4: box number

5: bore
